Active Directory: A Security Primer

June 2025 · 9 minutes to read

I wrote this as a personal reference while working on both sides of Active Directory - securing it for clients during defensive engagements and attacking it during adversary emulation exercises. Kerberos in particular is something I kept having to re-derive from scratch, so this article is my attempt to write it down clearly enough to actually stick. If you also find yourself forgetting which ticket is encrypted with which hash, or confusing the TGT with the Service Ticket, this is for you.

This first part covers the foundations: AD architecture, the objects that make it up, the Domain Controller’s role, and the authentication protocols behind every named attack. Part two covers the attack surface - trusts, privileged groups, GPO abuse, ACL misconfigurations, and the techniques that chain them together.

What Is Active Directory and Why Does It Matter?

Active Directory (AD) is Microsoft’s directory service for managing Windows environments. At its core it does one thing really well: centralised identity and access management. Every user, computer, and resource in a Windows enterprise authenticates through it. That centralisation is what makes it powerful for administrators and what makes it the single most valuable target in any Windows network.

If you control AD, you control the network. That is not hyperbole. It is why “path to Domain Admin” is the goal of virtually every enterprise penetration test.

AD uses Single Sign-On (SSO) - log in once, access everything your account is permitted to reach. This is done through Kerberos (the primary protocol) and NTLM (the legacy fallback).

Objects: The Building Blocks

Everything stored in AD is an object - a record with attributes. The most security-relevant ones:

Service accounts are regular user objects configured to run applications or services. They often have elevated privileges, weak passwords, and rarely rotate credentials. They are prime targets.

Architecture: Forests, Trees, and Domains

AD is hierarchical. From top to bottom:

Forest
├── Tree A
│   ├── Domain
│   │   ├── OU
│   │   │   └── Users / Computers / Groups
│   │   └── OU
│   │       └── Users / Computers / Groups
│   └── Child Domain
└── Tree B
    └── Domain

• Forest: the true security boundary. Objects in different forests cannot interact without an explicit trust. A new AD deployment starts a new forest.
• Tree: one or more domains sharing a contiguous DNS namespace.
• Domain: the core management unit. Has its own policies, account database, and at least one Domain Controller.
• OU (Organisational Unit): an organisational container. Group Policy Objects (GPOs) are applied here and admin rights can be delegated here. An OU is not a security boundary.

Security note: The forest is the real boundary, not the domain. Compromising one domain in a forest often provides a path to every other domain in it. Cross-forest trust misconfigurations extend that blast radius further.

Domain Controllers: The Brain

Domain Controllers (DCs) run Active Directory Domain Services (AD DS) - the database storing every account, password hash, group membership, and policy. Every authentication request flows through a DC.

Key facts:

• The PDC Emulator (one of five FSMO roles) handles password changes and authentication failures. It is the authoritative source for time synchronisation, which Kerberos depends on.
• DCs store NTDS.dit - the AD database file containing every user’s password hash. Extracting this file is often the endgame of an AD attack.
• Multiple DCs exist for redundancy and stay in sync via the Directory Replication Service (DRS). The replication protocol itself can be abused - I cover DCSync in part two.

Authentication: Kerberos and NTLM

This section is the foundation for understanding every named attack covered in part two.

Kerberos

Kerberos is the default authentication protocol in modern AD. It is ticket-based: instead of sending your password to every resource you want to access, you prove your identity once to a trusted third party - the Key Distribution Center (KDC), which runs on the DC - and receive tickets you present to services.

Three parties are always involved: the client, the KDC (comprising the Authentication Service and the Ticket Granting Service), and the target service. Passwords never travel over the wire. Identity is proved entirely through encryption: if you can decrypt something encrypted with your hash, you must be you.

Pre-Authentication

By default, when your client sends an authentication request it includes a timestamp encrypted with your password hash. The KDC decrypts it and if it checks out, you are authenticated. This is pre-authentication.

When pre-authentication is disabled on an account (a misconfiguration), the KDC responds to any authentication request without requiring proof. The response is still encrypted with the user’s hash, but now anyone can request it, take that encrypted blob offline, and crack it. That is AS-REP Roasting.

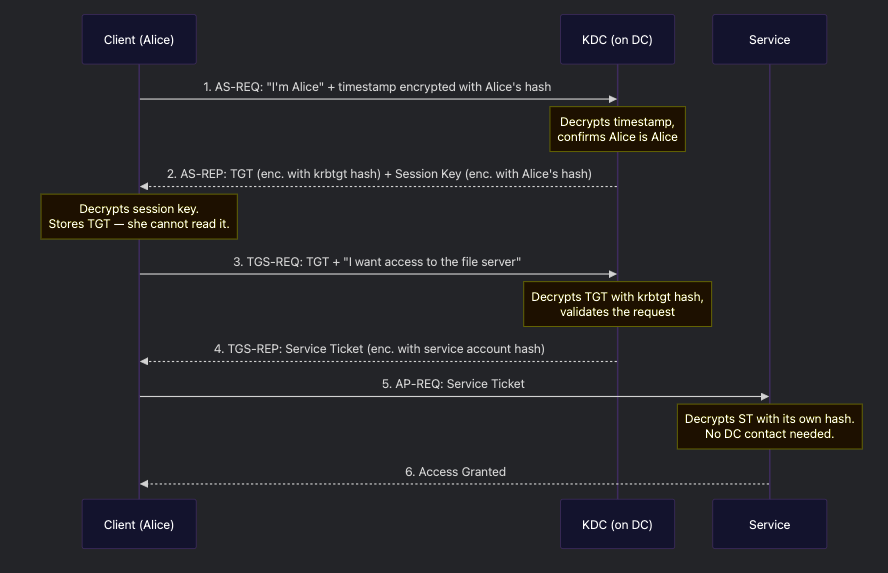

The Six-Step Flow

Three Things to Lock In

The service never calls home to the KDC. The service decrypts the Service Ticket using its own hash - if it decrypts cleanly, the ticket is valid. This offline validation is why Silver Tickets work: an attacker with the service account’s hash can forge a ticket the service accepts with zero DC involvement and no logs generated.

The TGT is encrypted with the krbtgt account’s hash. Only the KDC knows this hash. If an attacker obtains it, they can forge arbitrary TGTs for any user, with any group memberships, valid for any duration. This is the Golden Ticket attack. The only fix is resetting the krbtgt password twice (AD retains the previous hash for replication).

Any authenticated user can request a Service Ticket for any SPN. A Service Principal Name (SPN) is the identifier an account registers when running a service (e.g. MSSQLSvc/dbserver.corp.local). Requesting a ticket for an SPN is normal Kerberos behaviour, but it means any domain user receives a blob encrypted with the service account’s hash and can crack it offline. This is Kerberoasting.

Kerberos in 30 Seconds

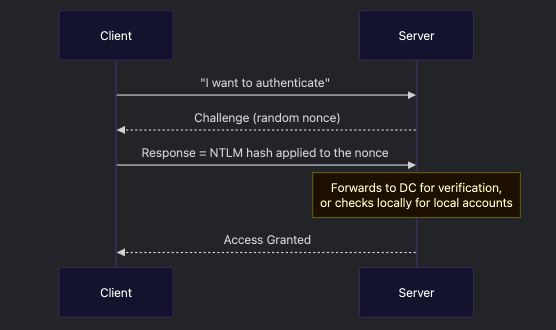

NTLM: The Legacy Fallback

NTLM is the older challenge-response protocol. It is used when Kerberos is unavailable - for example when accessing resources by IP address instead of hostname, off-domain systems, or legacy applications.

NTLM hashes can be captured over the network (e.g. with Responder), dumped from memory (lsass), or extracted from the SAM/NTDS.dit database, and used directly to authenticate without cracking. This is Pass-the-Hash. In NTLM, the hash is the credential. Cracking it to plaintext is optional.

AD Components Worth Knowing

AD CS deserves special attention. It is a fully featured PKI bolted into most AD environments, often with insecure default certificate templates. The ESC1-ESC13 vulnerability classes (from SpecterOps research) have made AD CS a primary post-exploitation target in modern engagements.

Part two covers the attack surface: trust relationships, privileged groups, GPO abuse, ACL misconfigurations, and a full breakdown of the named AD attack techniques.
